Marine Anchor Chain
Product Name:
Marine Anchor Chain
No. :
9
Product Description

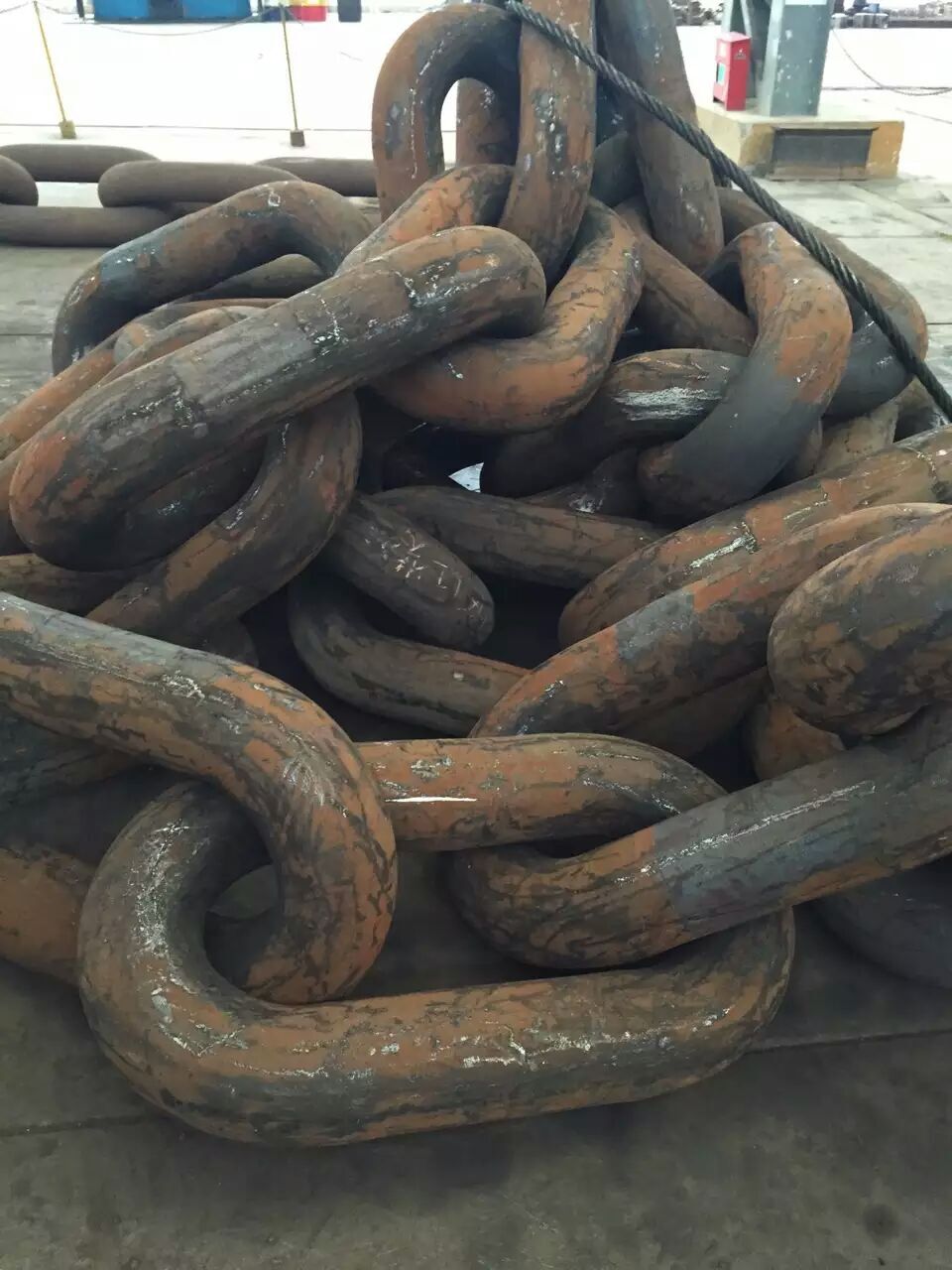

U2 U3 Welded Steel studless link/stud link ship anchor chain
• Size: Dia. 12.5mm to 162mm
• Material: Alloy Steel or Carbon Steel
• Technology: Forged and Welded
• Surface Treatment:
· Electrogalvanized
· Hot Dip Galvanized
· Black Tarred
· Self colored
· Blackened Oxide
Dia.
BM1 (KN)
BM2 (KN)
BM3 (KN)
Weight
MM
Breaking Load
Proof Load
Breaking Load
Proof Load
Breaking Load
Proof Load
kg/M
16
94.72
47.1
132.3
66.2
184.83
92.42
5.56
17.5
113.31
56.35
157.78
78.89
221.1
110.55
6.65
19
133.57
66.42
187.2
93.6
260.64
130.32
7.83
20.5
155.49
77.33
217.27
108.64
303.42
151.7
9.12
22
179.08
89.06
250.9
125.4
349.4
174.7
10.5
24
213.25
105.98
298
149.9
415.8
207.9
12.5
26
250.12
124.38
350.8
175.4
488
244
14.67
28
290.08
144.26
406.7
203.8
566
283
17
30
333
165.6
467.5
234.2
649.8
324.9
19.5
32
378.88
188.42
531.2
265.6
739.3
369.6
22.22
34
427.72
212.7
599.8
299.9
834.6
417.3
25.08
36
479.52
238.46
672.3
336.1
935.7
467.8
28.12
38
534.28
265.7
748.7
374.4
1042.5
521.3
31.33
40
592
294.4
829.1
414.5
1155.2
577.6
34.72
42
652.68
324.58
915.3
457.7
1273.6
636.8
38.28
44
716.32
356.22
999.6
502.7
1397.8
698.9
42.01
46
782.92
389.34
1097.6
548.8
1527.8
763.9
45.92
48
852.48
423.94
1195.6
597.8
1663.5
831.7
50
50
926.09
460
1293.6
648.8
1805
902.5
54.25
• Technology: Forged and Welded
• Surface Treatment:
